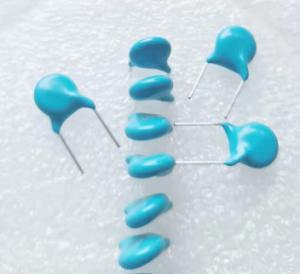

Length 8mm 100pf Y2 Safety Capacitor Anticorrosive Solvent Resistant

Product Categories
Dongguan HOWFINE Electronic Technology Co., Ltd.
Contact Now

Length 8mm 100pf Y2 Safety Capacitor Anticorrosive Solvent Resistant

Model Number : Y2 101K/250V L8mm

Certification : UL VDE CQC KTL

Place of Origin : China

MOQ : 5000 pcs

Price : RMB 0.09-0.11/PCS

Payment Terms : T/T

Delivery Time : 10-15work days

Packaging Details : 1000 pcs

Material : Ac voltage Safety Ceramic

Color : Blue

ated Voltage : 300VAC

Operating Temperature : -25 ~125℃

Product Type : safety AC capacitor

Capacitance Tolerance : ± 10%

Length : 8mm

Temperature Characteristic : Y5P

Contact Now

safety Ceramic disc capacitor 100pf 300VAC Y2 safety capacitor L8mm

Product parameters
Specification Reference Standard IEC 60384-14 ; EN 60384-14 ; IEC UL60384 ; K 60384
Approved Monogram VDE /KTL / UL / CQC
Subclass ; Rated Voltage(UR) X1 / Y1/Y2 ; 400VAC /300VAC
Capacitance Range 100pF to 10000pF
Voltage Proof 4000VAC for 1min/2000VAC for 1min/1800VAC for 1min
Capacitance Tolerance Y5P±10%(K) ; Y5U,Y5V±20%(M) measured at 25℃,1Vrms,1KHz
Dissipation Factor (tgδ) Y5P,Y5U tgδ≤2.5% ; Y5V tgδ≤5% measured at 25℃,1Vrms,1KHz
Insulation Resistance(IR) IR≥10000MΩ,1min,100VDC
Operating Temperature -40℃ to +85℃ ; -40℃ to +125℃
Temperature Characteristic Y5P,Y5U,Y5V
Flame Retardant Epoxy UL94-V0

model width thickness foot spacing lead Voltage capacity material Tolerance
Y2-103M-Y5V φ13mm T3.8mm F10mm L3-22mm 300V[**]C 10000pF Y5V ±20%
Y2-472M-Y5V φ9.5mm T3.8mm F7.5mm L3-22mm 300V[**]C 4700pF Y5V ±20%
Y2-332M-Y5V φ8.5mm T3.8mm F7.5mm L3-22mm 300V[**]C 3300pF Y5V ±20%
Y2-222M-Y5V φ7.5mm T3.8mm F7.5mm L3-22mm 300V[**]C 2200pF Y5V ±20%
Y2-152M-Y5V φ6.5mm T3.8mm F7.5mm L3-22mm 300V[**]C 1500pF Y5V ±20%
Y2-102M-Y5V φ6.5mm T3.8mm F7.5mm L3-22mm 300V[**]C 1000pF Y5V ±20%
Y2-472M-Y5U φ13mm T3.8mm F10mm L3-22mm 300V[**]C 4700pF Y5U ±20%
Y2-332M-Y5U φ11mm T3.8mm F10mm L3-22mm 300V[**]C 3300pF Y5U ±20%
Y2-222M-Y5U φ8.5mm T3.8mm F7.5mm L3-22mm 300V[**]C 2200pF Y5U ±20%
Y2-152M-Y5U φ8.5mm T3.8mm F7.5mm L3-22mm 300V[**]C 1500pF Y5U ±20%
Y2-102M-Y5U φ7.5mm T3.8mm F7.5mm L3-22mm 300V[**]C 1000pF Y5U ±20%
Y2-821K-Y5U φ7.5mm T3.8mm F7.5mm L3-22mm 300V[**]C 820pF Y5U ±10%
Y2-681K-Y5U φ6.5mm T3.8mm F7.5mm L3-22mm 300V[**]C 680pF Y5U ±10%
Y2-561K-Y5U φ6.5mm T3.8mm F7.5mm L3-22mm 300V[**]C 560pF Y5U ±10%
Y2-471K-Y5U φ6.5mm T3.8mm F7.5mm L3-22mm 300V[**]C 470pF Y5U ±10%
Y2-102K-Y5P φ10mm T3.8mm F7.5mm L3-22mm 300V[**]C 1000pF Y5P ±10%
Y2-821K-Y5P φ10mm T3.8mm F7.5mm L3-22mm 300V[**]C 820pF Y5P ±10%
Y2-681K-Y5P φ8.5mm T3.8mm F7.5mm L3-22mm 300V[**]C 680pF Y5P ±10%
Y2-561K-Y5P φ8mm T3.8mm F7.5mm L3-22mm 300V[**]C 560pF Y5P ±10%
Y2-471K-Y5P φ7.5mm T3.8mm F7.5mm L3-22mm 300V[**]C 470pF Y5P ±10%
Y2-331K-Y5P φ6.5mm T3.8mm F7.5mm L3-22mm 300V[**]C 330pF Y5P ±10%
Y2-221K-Y5P φ6.5mm T3.8mm F7.5mm L3-22mm 300V[**]C 220pF Y5P ±10%
Y2-151K-Y5P φ6.5mm T3.8mm F7.5mm L3-22mm 300V[**]C 150pF Y5P ±10%
Y2-101K-Y5P φ6.5mm T3.8mm F7.5mm L3-22mm 300V[**]C 100pF Y5P ±10%

Application:

1. It is suitable for noise suppression circuit of power supply circuit of electronic equipment

2. Can be used in antenna coupling and bypass circuit

3. Control panel of various small household appliances

4. Power filter

5. High frequency AC load

6. Switching power supply

7. Electronic ballast

8. LED bulbs

Length 8mm 100pf Y2 Safety Capacitor Anticorrosive Solvent Resistant
